Unleash the Night Sky with High Power 60W Laser Systems

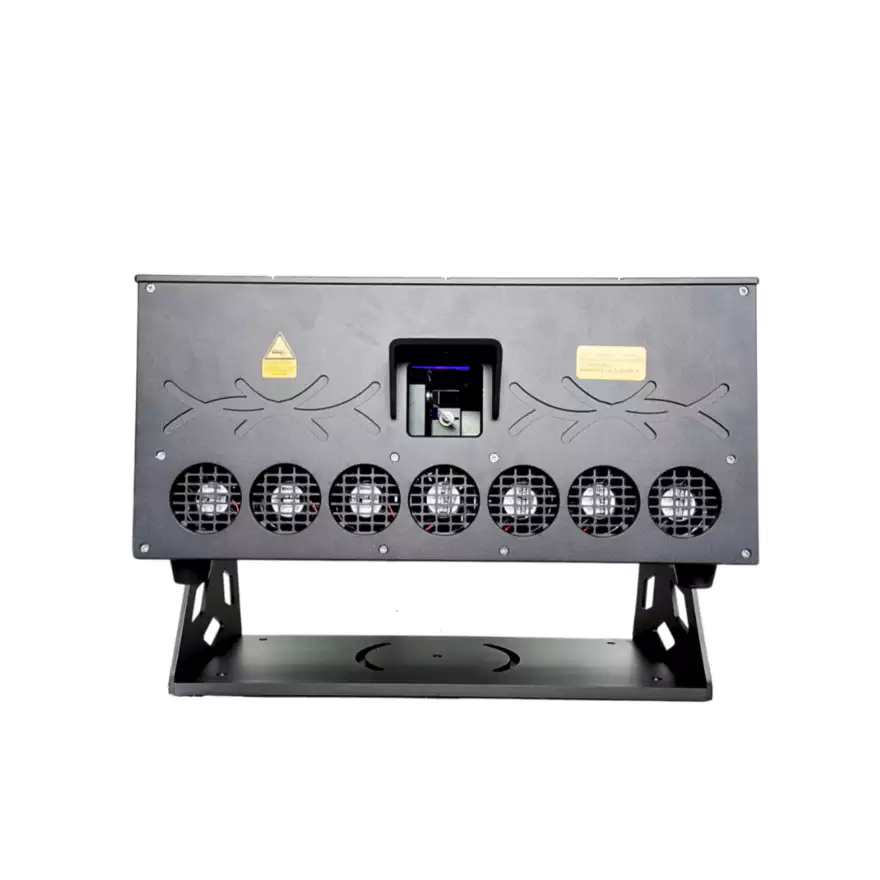

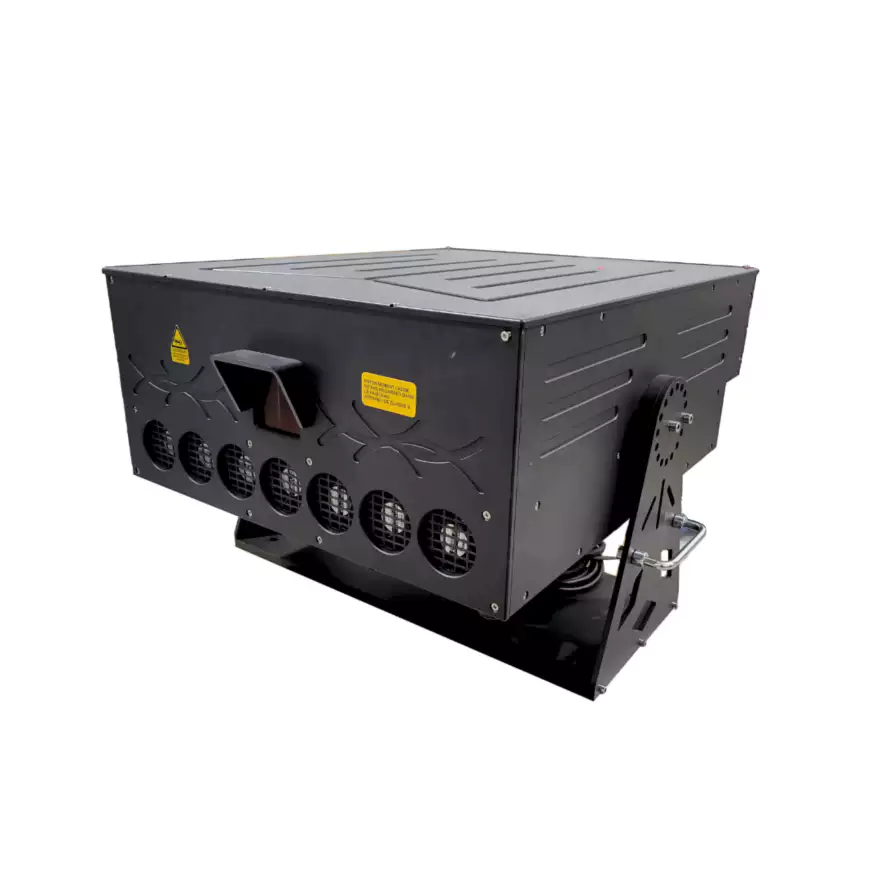

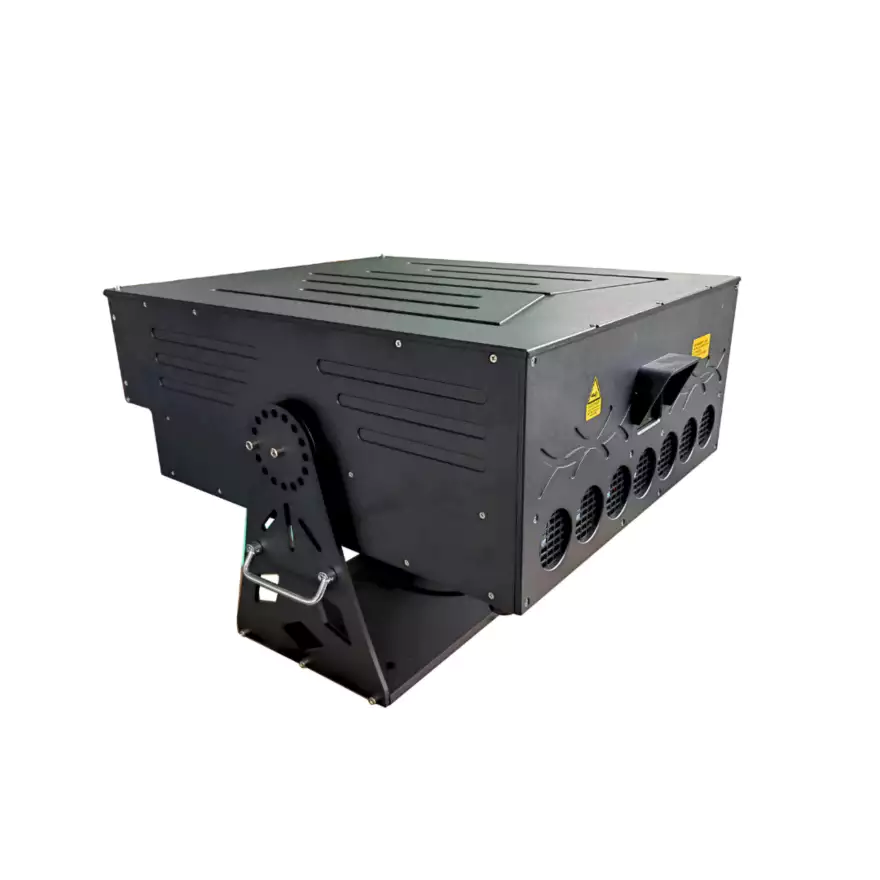

High Power 60Watt Sky Beam Animation Laser Projector Skywriter Laser Systems

Laser Effects:

With external or built-in FB4, this YX860 model Low Divergence RGB laser is new for 2024 and offers various laser show effects for ALL weather.

Allows you to save and upload laser cues or shows created in laser software to its hardware.

Compact Structure

Fashion design and dark grey color, rugged and rainproof aluminum housing.

Usage:

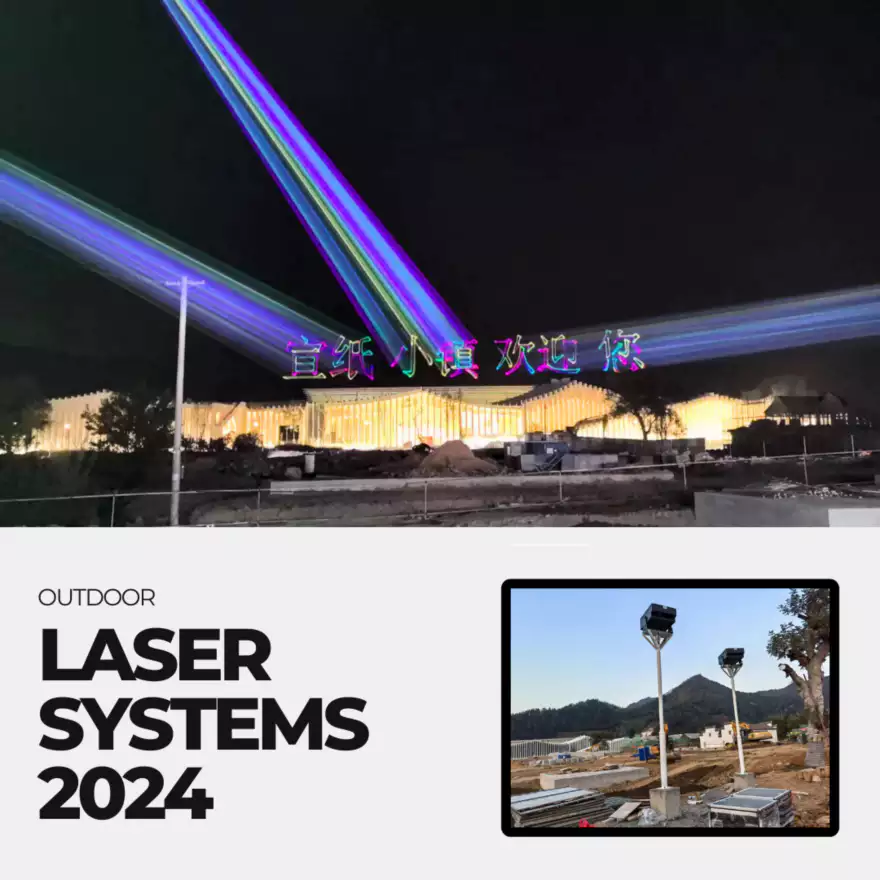

Spectacular laser shows for underground, mountain, building, fountain, theme park

Seamless Laser Show, no mater simple yet effective laser display or more complex performances.

Customizable, Low OEM/ODM Price & Long Warranty:

With Ecteh Lighting, Be Experted About Laser Lights.

All the laser show systems products can be customized, upon request Output 300mW-200W diode-based laser systems, with the industry’s best and longest warranty 2-year warranty for all parts.

Description

Features:

Voltage: AC100V～250V, 50HZ/60HZ

Rated Power: 1500W

Laser power: 60W(Red-16W@650nm, Green-20W@532nm,Blue-24W@450nm)

Working Modes: FB4 ILDA, DMX, Sound Active, AUTO, Master-Slave

DMX Control Channel: 12/21 Channel

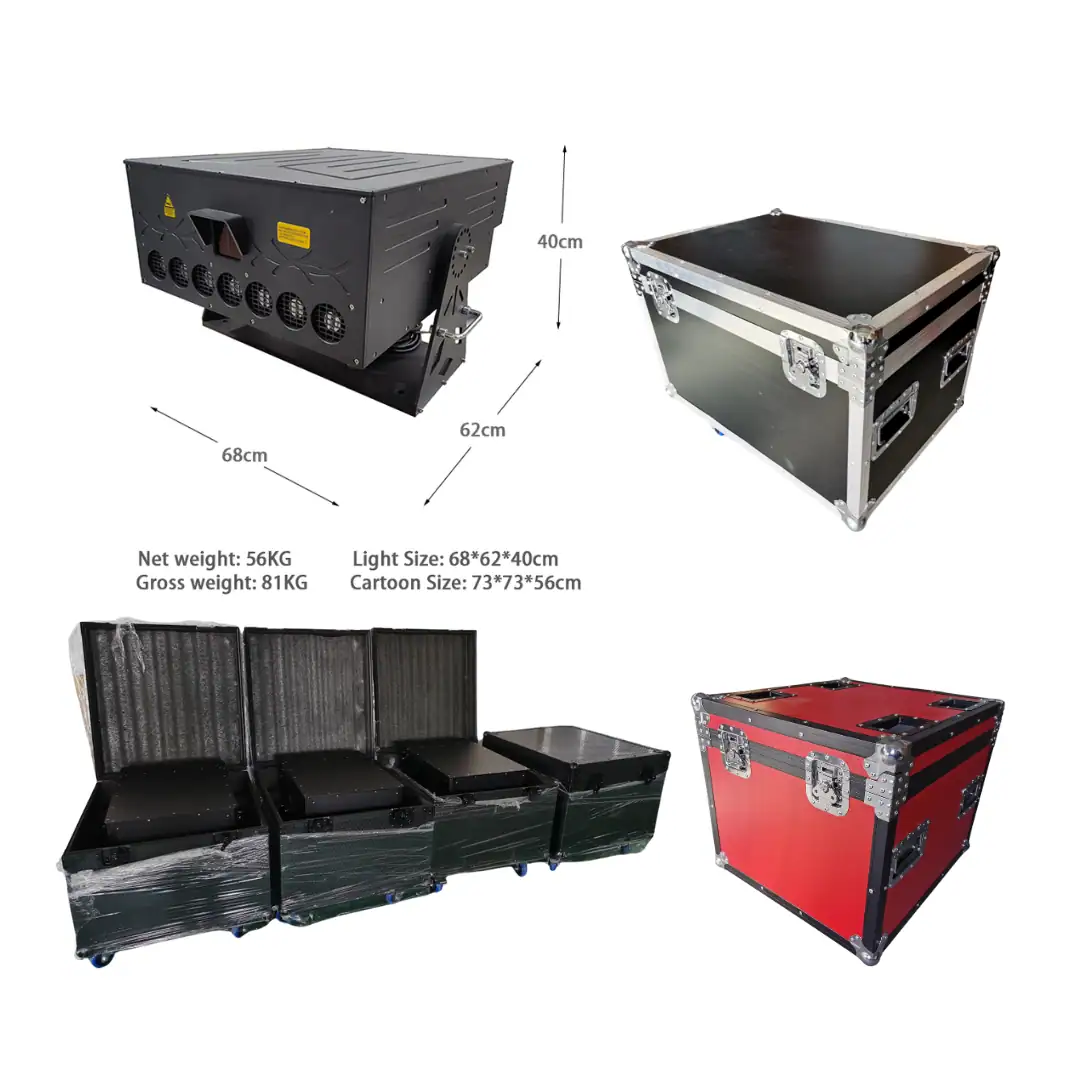

Lamp Size & Weight: 68(L) x 62(W) x 40(H ) CM, 56kg

Packing Size & Weight: 73(L) * 73(W) x 56(H ) CM/81kg (Freightcase)

Parameters:

Item No: YX860-RGB60000
Voltage: AC110V/230V 50~60Hz±10%
Power Consumption: 1500w
Laser Source: Solid Semi-Conductor Laser Generator
Laser tube core brand: Nichia tube Diode with FAC
Modulating Signal: TTL 0~20K & Analog Modulation
Laser Wavelength: Green 530nm, Red 638nm, Blue 450nm
Laser Power: 60W(R16W ,G20W ,B24W)
Divergence: <1.0mrad(full angle)
Scanner System: DT50KPPS@8°
Scanner Angle: 60°max
Control Signal: DMX-512 International Standard Signal
Control Channel: 12/21 Channel
Control Mode: Voice Control, Automatic, DMX512, Master-Slave, ILDA Computer Software Interface, FB4
(optional)
Laser Effects: Laser Beams; Laser Patterns; Text Advertising ; Laser Engraving; Various Animation (Programed by Quickshow Software, Controlled by FB3/FB4)
Operating Environment: Outdoor & Indoor
Waterproof Grade: IP65
Working Temperature: －40°C~45°C

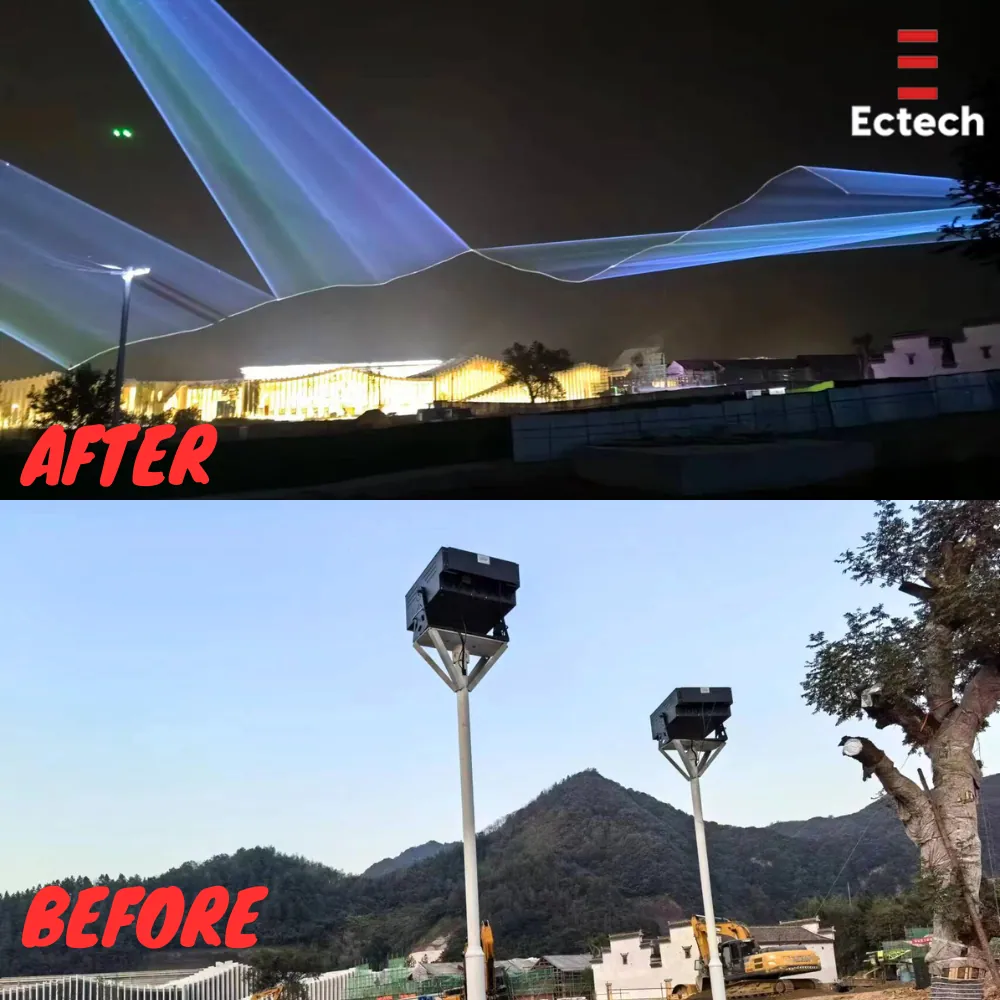

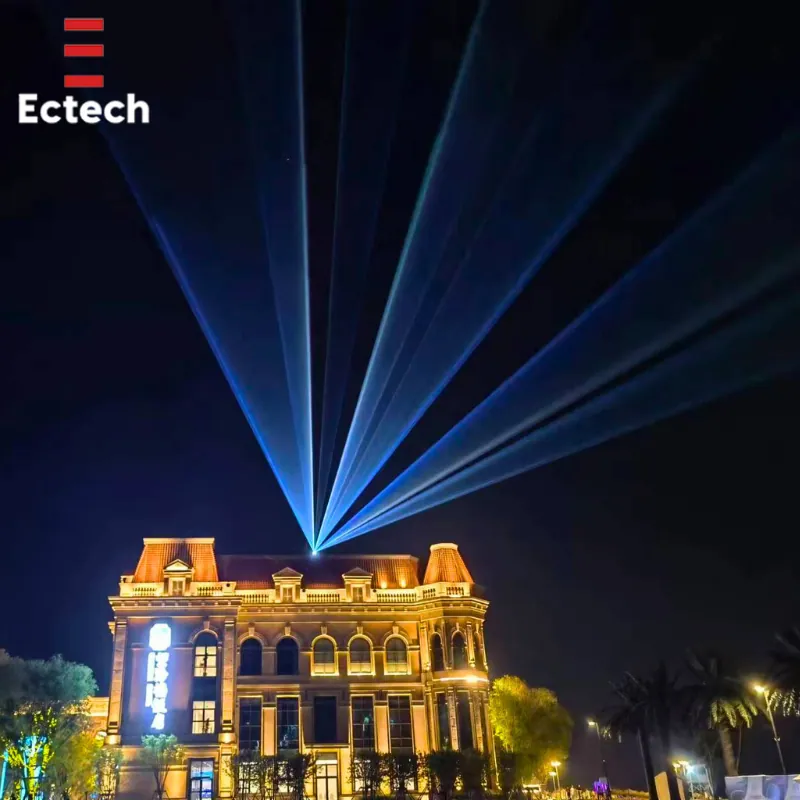

Applications: outdoor building landmarks, large-scale performances, water curtain laser show, light show, scenic spot laser lighting

Functions:

High Brightness Laser Beams in the Sky;

Built-in Laser Patterns;

Various Laser Animation Programmed by FB4

Logo/Text Projection for Advertising ;

Laser Mapping for Buildings;

(Most of the Effects should be Programed by Quickshow Software, Controlled by FB3/FB4)

Applications:

Laser Shows for City Beautification Projects, Commercial Building, Theme Park, Sea View Lighting, Outdoor Live Events, Drive-in Car Concerts, Staging Concert Touring, Outdoor Festival Staging, Traveling Theaters

Lowest Budget to Create Your Next Laser Shows
